NVHR
Natural Ventilation with Heat Recycling
Product Documentation & Downloads
-

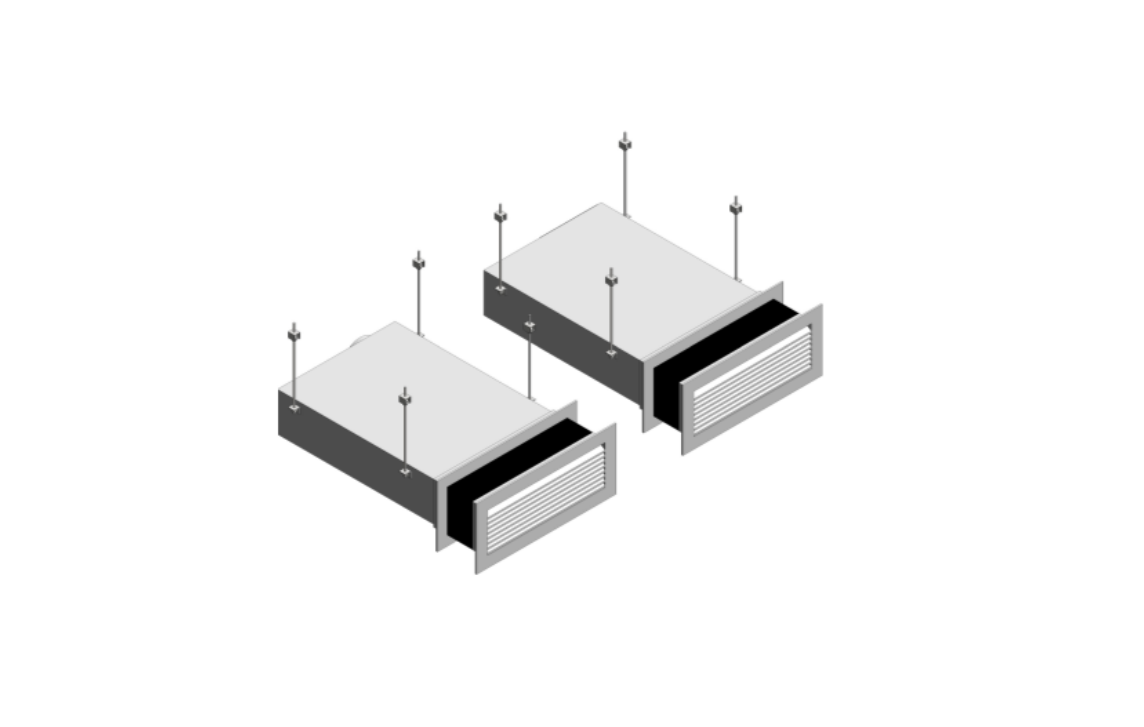

Revit File NVHR 1100 Model -
Revit File NVHR 1700 Model
-
Revit File NVHR 900 Model
-
GA Drawing NVHR 900 Spigot Model
-
GA Drawing NVHR 1100 Grille Model
-
GA Drawing NVHR 1100 Spigot Model
-
GA Drawing NVHR 1700 Spigot Model
-
GA Drawing NVHR 1700 Grille Model
-
GA Drawing NVHR 900 Grille Model
-
Product Literature NVHR Brochure

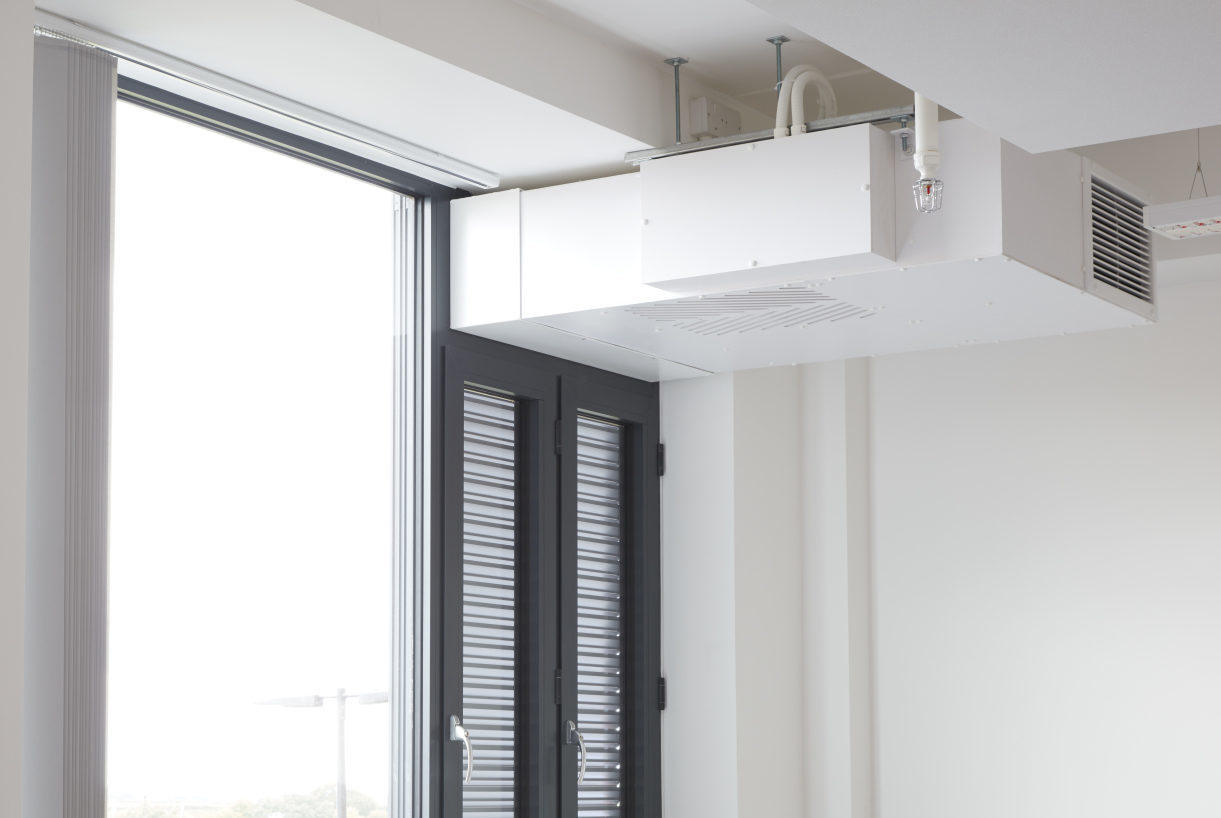

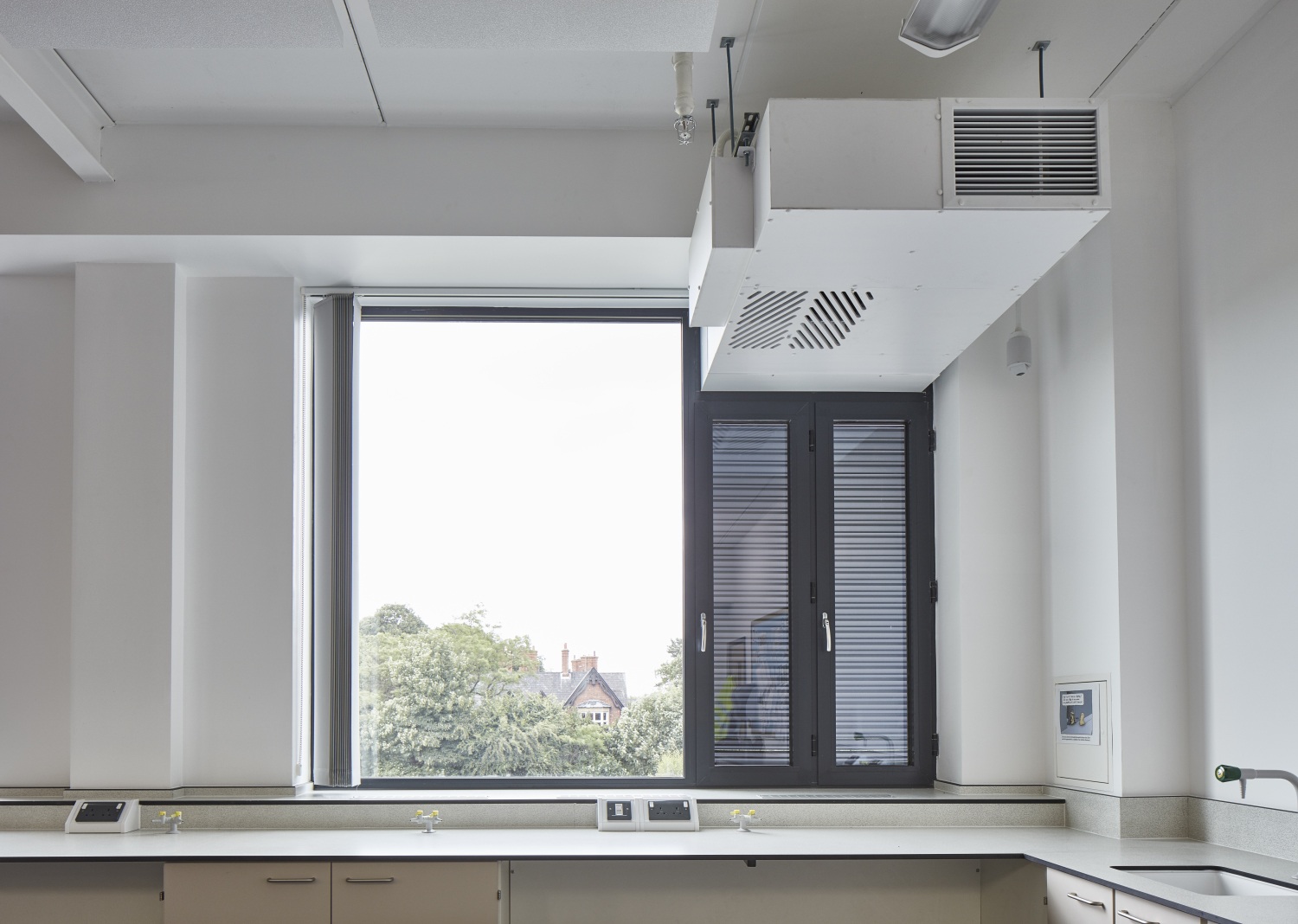

Breathing Buildings first introduced the NVHR facade based natural, ventilation, heat recycling systems in 2013. Our latest models, the NVHR 900, NVHR 1100 an 1700 benefit from continuous improvement programmes. This includes a more robust metal fabricated enclosure with pre-coated zinc, numerous performance and energy saving enhancements including a thermally insulated damper.

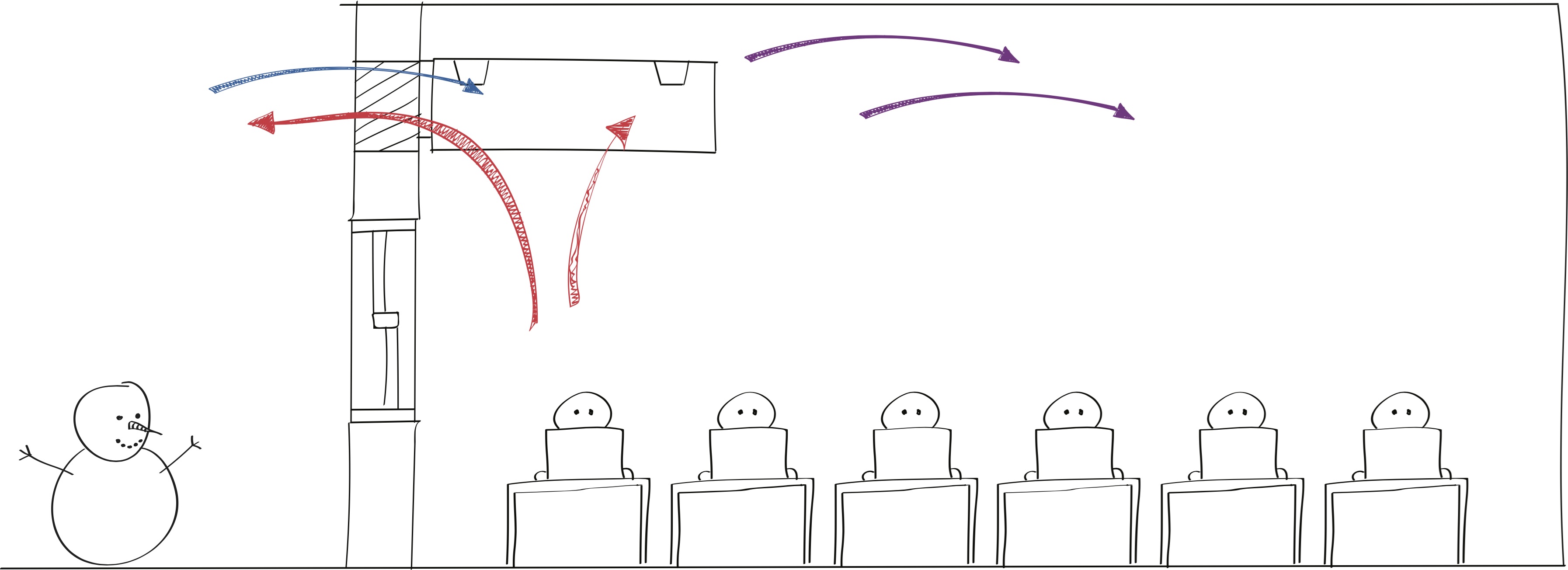

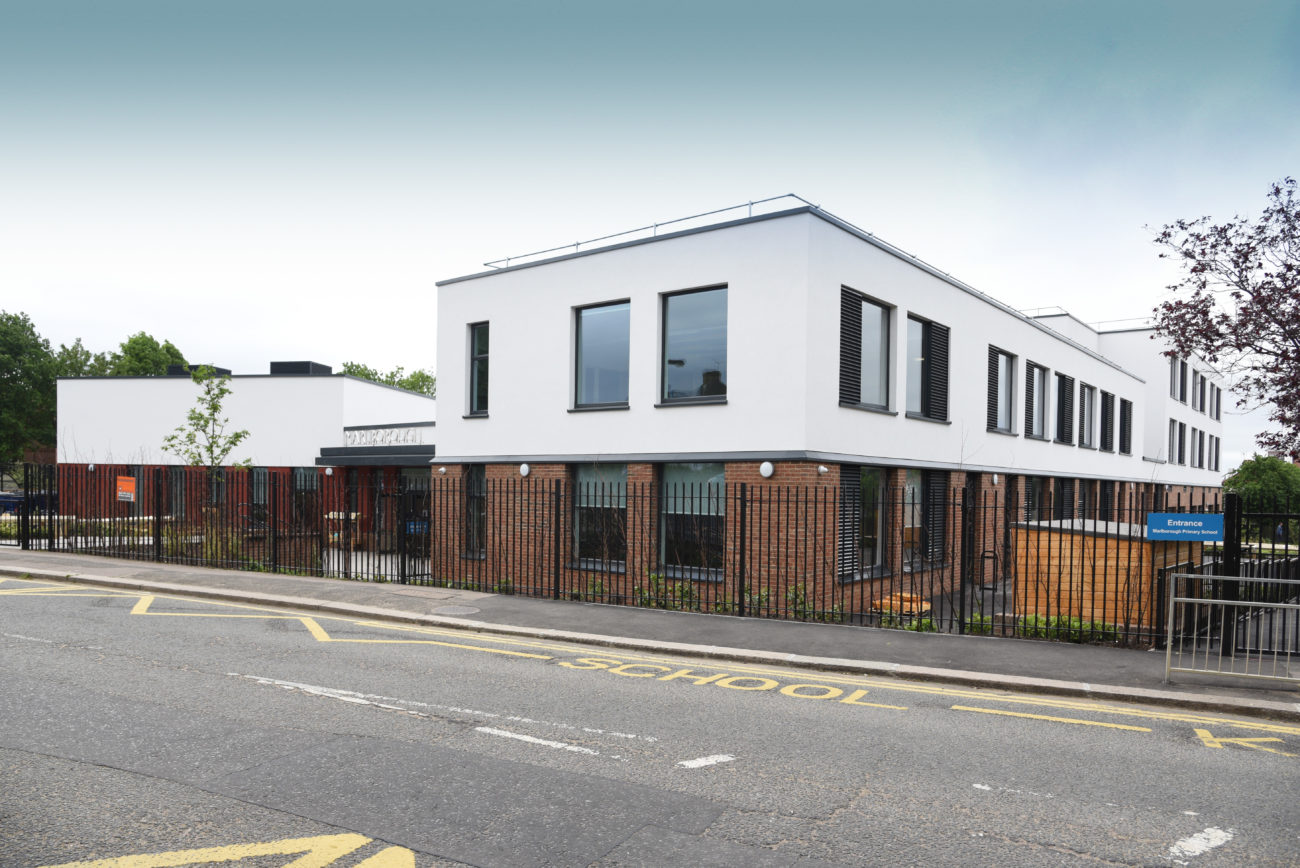

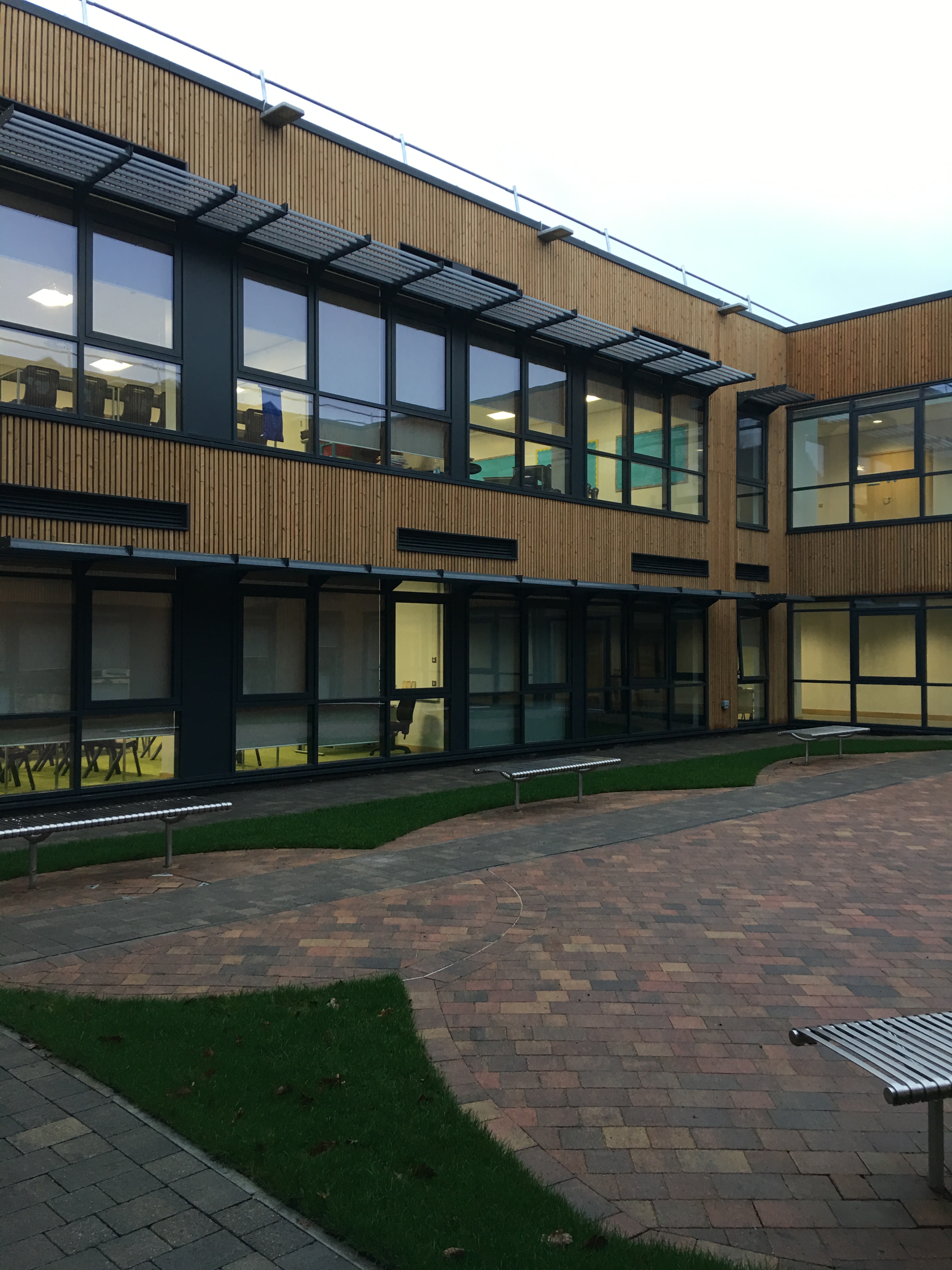

These triple Award winning products are installed in thousands of premises in the UK including schools where they supply energy efficient, enhanced fresh air and comfort to occupants all-year-around. The units utilise the natural internal heat gained from people and equipment and external fresh air to create the perfect combination to enhance indoor comfort for all occupants.

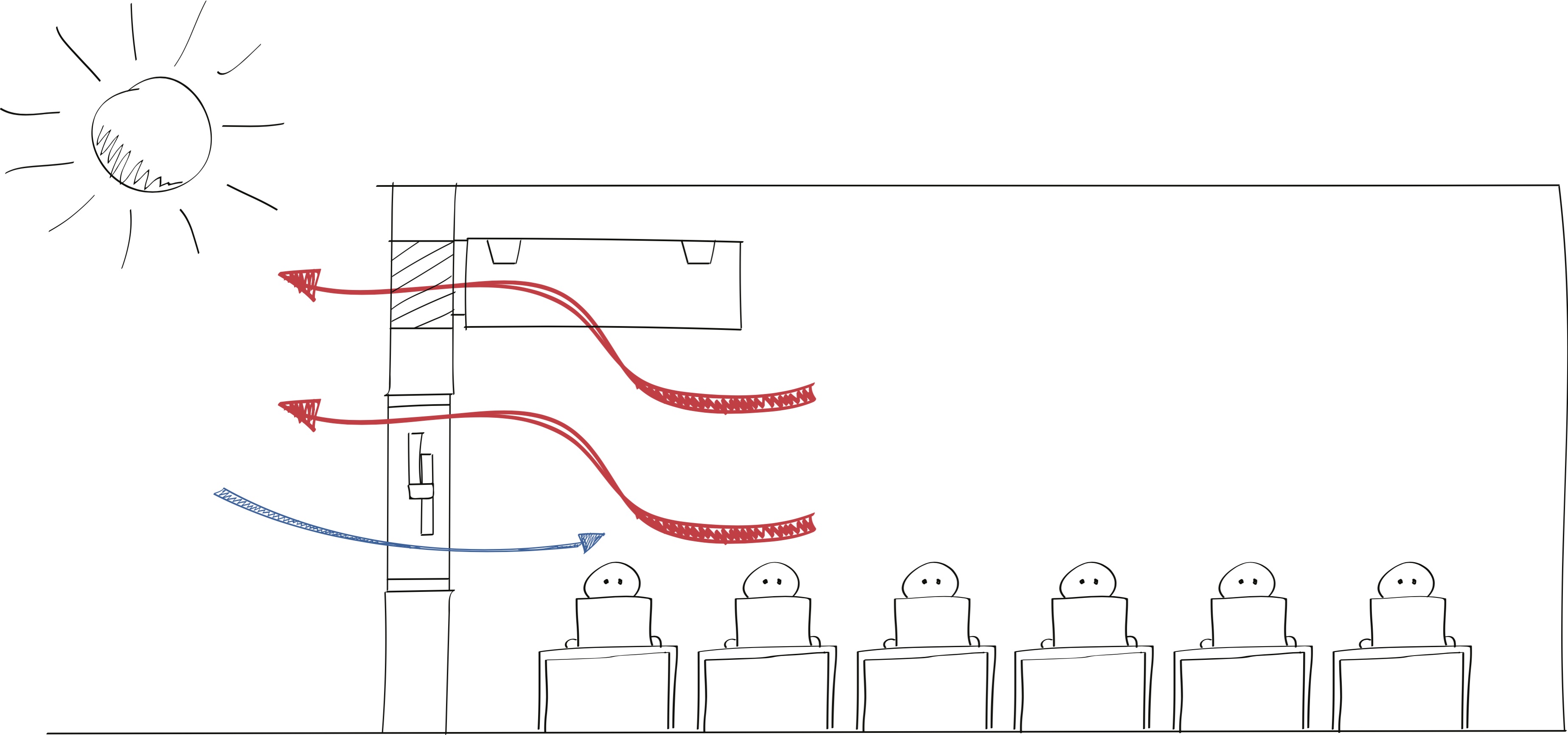

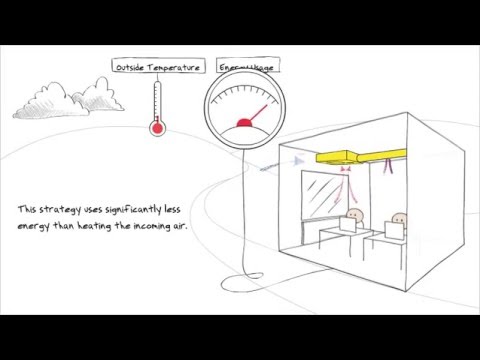

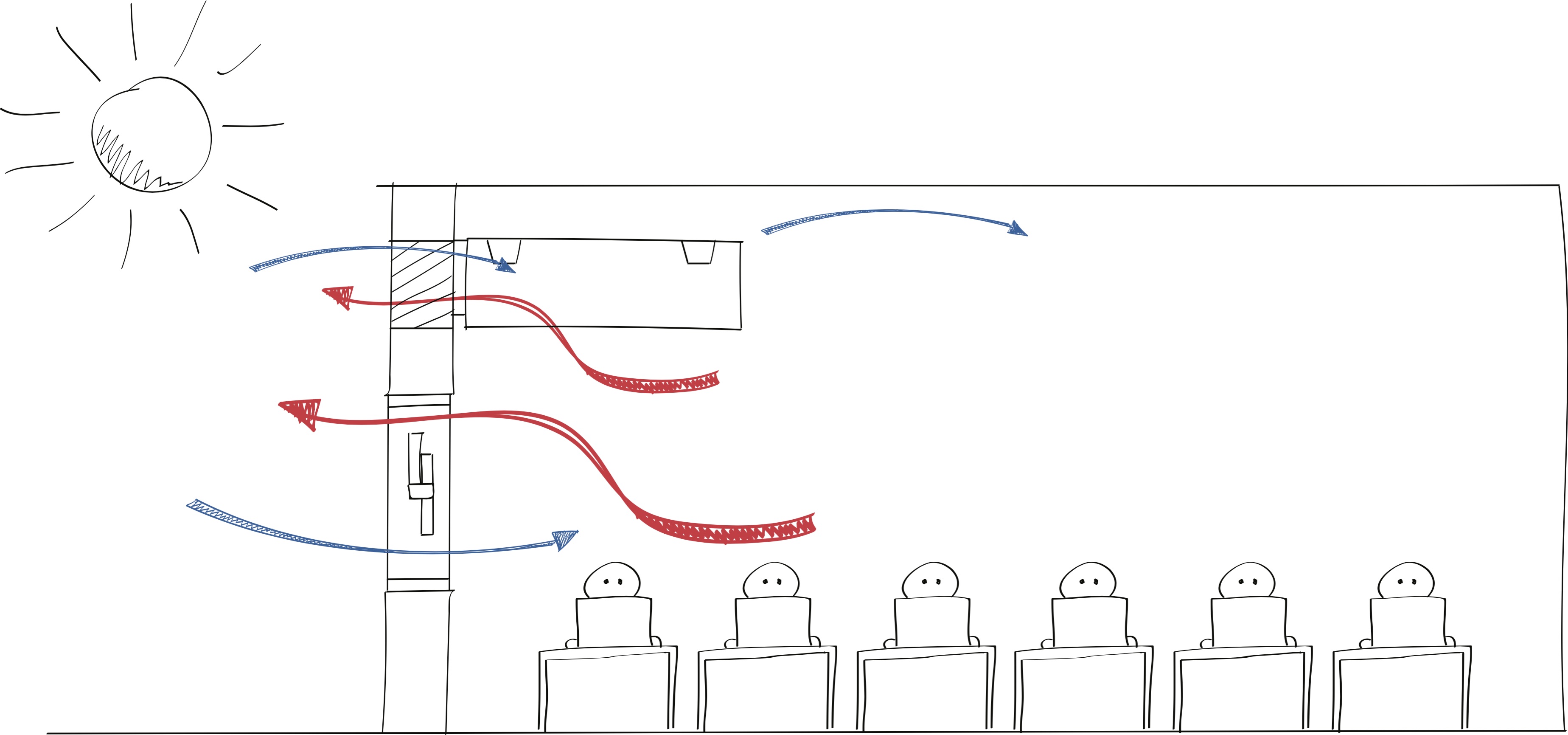

These systems are energy efficient due to the fact that they utilise free ventilation via natural passive buoyancy driven air flows and therefore save on overall building energy costs.
Discover more utilising the links on the right that include sales brochures, general assembly and installation drawings and links to the REVIT files that are available to download from the BIM store.
